Agricultural machinery – tractors, harvesters, combines, sprayers, and balers – operates in extreme environments: high dust, vibration, temperature swings, and long working hours. Regulations are increasingly stringent: EU Stage V, EPA Tier 4 Final, and China Stage IV. Required reductions: PM 90–99%, NOx 80–95%. Our systems provide robust, service-friendly DOC, DPF, and SCR aftertreatment solutions.
Equipment operates at variable loads: extended low-load idling (transport) to sustained high-load work (tillage, harvesting). Exhaust temperatures fluctuate (100°C idle to 550°C+ full load). Dust levels are extreme. Maintenance access is limited. Our systems integrate DOC, DPF, and SCR technologies into rugged packages designed for remote-field service.

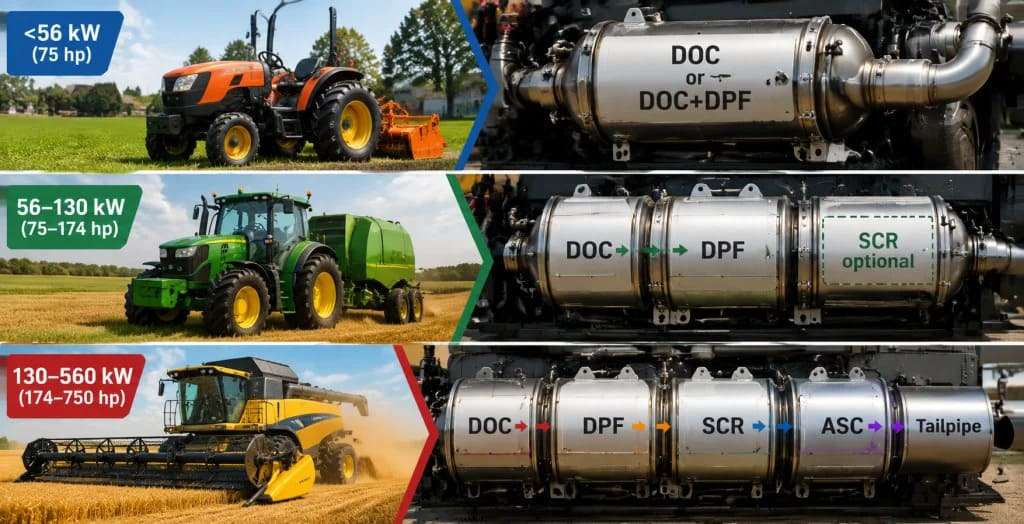

Power Range | Typical Machinery | Aftertreatment Configuration |
<56 kW (75 hp) | Compact tractors, small implements | DOC or DOC+DPF |
56–130 kW (75–174 hp) | Mid-range tractors, combines | DOC → DPF (SCR optional) |
130–560 kW (174–750 hp) | Large tractors, harvesters | DOC → DPF → SCR → ASC → Tailpipe |
Converts CO and HC, oxidizes NO to NO₂ for passive DPF regeneration and fast SCR reactions. Agricultural DOCs: higher sulfur tolerance (500–2,000 ppm) and oversized volume (20–40% larger) for extended service intervals (1,000–3,000 hours). Cordierite honeycomb with Pt/Pd washcoat.
Traps soot and ash. Agriculture sees higher soot loads and higher oil consumption (1–3% vs. 0.05–0.1% on-road). Wall-flow cordierite or SiC substrate, >99% filtration. Service life: 3,000–8,000 hours before ash cleaning.
Primary NOx removal (>130 kW). Cu-zeolite (175–500°C) preferred. DEF dosing system must handle extended idle. Tank size: 20–100 L. Conversion efficiency: 90–95%.
Final NH₃ slip polishing, especially important for operator exposure. Pt on alumina, often integrated with SCR brick.
Pollutant | Engine Out | After Aftertreatment (Stage V / Tier 4) | Efficiency |
NOx | 300–1,000+ ppm | <0.4 g/kWh (130–560 kW) | 85–95% |
PM | 0.1–0.8 g/kWh | <0.015 g/kWh | >98% |
CO | 100–500 ppm | <10 ppm | >95% |
HC | 50–200 ppm | <10 ppm | >95% |
Machinery | Power Range | Aftertreatment | Key Challenges |
Compact tractor | 19–56 kW | DOC or DOC+DPF | Low load, extended idle |
Utility tractor | 56–130 kW | DOC + DPF | Dust, variable load |
Row-crop tractor | 130–300 kW | DOC + DPF + SCR | High sulfur fuel, long hours |
4WD articulated tractor | 300–560 kW | DOC + DPF + SCR + ASC | High load, remote operation |
Combine harvester | 200–500 kW | DOC + DPF + SCR | Extreme dust, seasonal use |
Forage harvester | 300–700 kW | DOC + DPF + SCR + ASC | High load, continuous operation |
Cotton picker / stripper | 200–400 kW | DOC + DPF + SCR | Tight packaging |
Sugarcane harvester | 300–500 kW | DOC + DPF + SCR | High dust, tropical humidity |
Self-propelled sprayer | 100–300 kW | DOC + DPF + SCR | Low load, frequent starts |
Heavy-duty pre-filters, sealed electrical connections, remote air intake.
Regen request button, parked regeneration, insulated aftertreatment.
Vanadia SCR for high-sulfur fuel; Cu-zeolite for low-sulfur regions.
Anti-seize coatings, corrosion protection, battery maintainers for idle periods.
GPS/telematics report faults, soot load, DEF level, catalyst life.
Accessible DPF for ash cleaning, replaceable catalyst bricks for 10,000+ hours service life.
Thousands of systems operating across continents. Validated to Stage V, Tier 4 Final, and China Stage IV
Extreme environment testing ensures robust packaging.
Anti-seize coatings, corrosion protection, storage modes.
Dealer network and field service engineers supporting harvest seasons worldwide.
From compact tractors to 500+ hp combines, our agricultural aftertreatment solutions deliver compliance, uptime, and durability in the dustiest, toughest conditions. Partner with us to engineer your path to cleaner farming.
