Mining machinery – haul trucks, loaders (LHDs), drills, scalers, bolters, graders – operates in extreme environments. Underground mines face confined tunnels and high diesel particulate matter (DPM) concentrations. Surface mines face extreme dust, high altitudes (2,000–4,500 m), and year-round operation. Regulations include EPA Tier 4 Final, EU Stage V, MSHA (US), and ATEX (Europe). We provide validated aftertreatment solutions for 50 kW–2+ MW mining machinery.
Underground mines require near-zero emissions at the point of use; ventilation is costly. DPM is a carcinogen; NO₂ is immediately hazardous. Surface mines face dust, reduced oxygen, and temperature extremes (-40°C to +50°C). Systems deliver ultra-low emissions with rugged, serviceable designs.
Operation | Configuration |

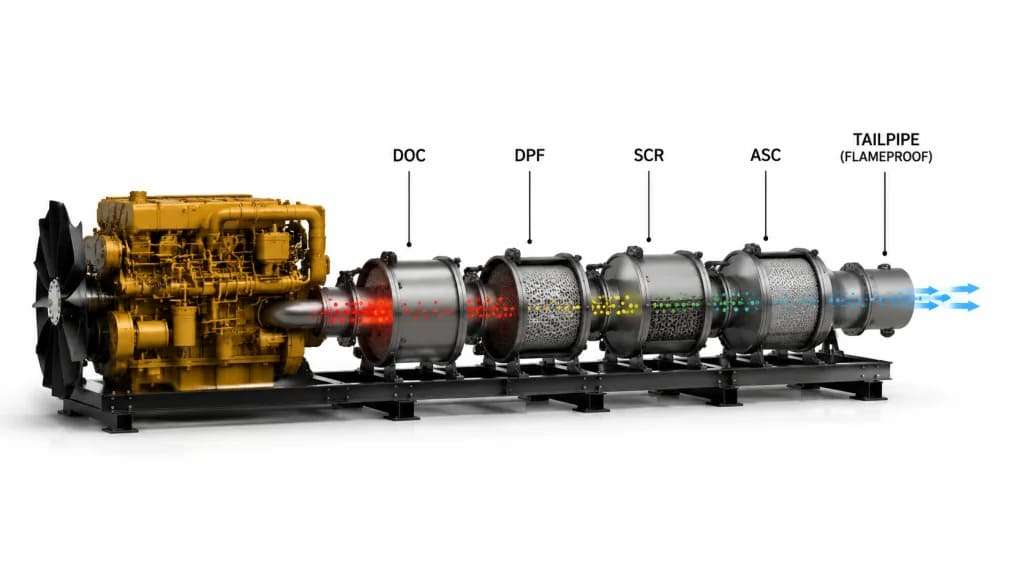

Underground (LHDs, haul trucks, drills, bolters – MSHA/ATEX) | Engine → DOC → DPF → SCR → ASC → Tailpipe (flameproof/spark arrestor) |
Surface (haul trucks, graders, shovels – Tier 4 Final / Stage V) | Engine → DOC → DPF → SCR → ASC → Tailpipe |
Wall-flow SiC or cordierite. Filtration: >99% of elemental carbon. Electric regeneration (zero-combustion) for underground. Regeneration inhibit or parked regeneration for safety.
Cu-zeolite (175–500°C) for underground low-temp operation; vanadia for surface/high-sulfur fuel. Conversion efficiency: 90–95%. NH₃ slip <5 ppm underground.
Mandatory underground. Pt on alumina, reduces NH₃ slip <5 ppm.
MSHA/ATEX certified, flamepath joints, surface <150°C, explosion-resistant housing (10 bar+).
Oxygen sensor recalibration, higher DPF regeneration temp (+50–100°C), oversized DOC, turbo/ECU recalibration.
Pollutant | Engine Out | After Aftertreatment | MSHA / Workplace Limit |
DPM (elemental carbon) | 1–5 mg/m³ | <0.05 mg/m³ | 0.16 mg/m³ |
NO₂ | 100–400 ppm | <5 ppm | 5 ppm (IDLH: 20 ppm) |
CO | 100–500 ppm | <10 ppm | 50 ppm (PEL) |
NH₃ slip | N/A | <5 ppm | 25 ppm |
NOx (combined) | 300–1,000+ ppm | <50 ppm | N/A |
Machinery | Power Range | Operation | Aftertreatment | Key Requirements |

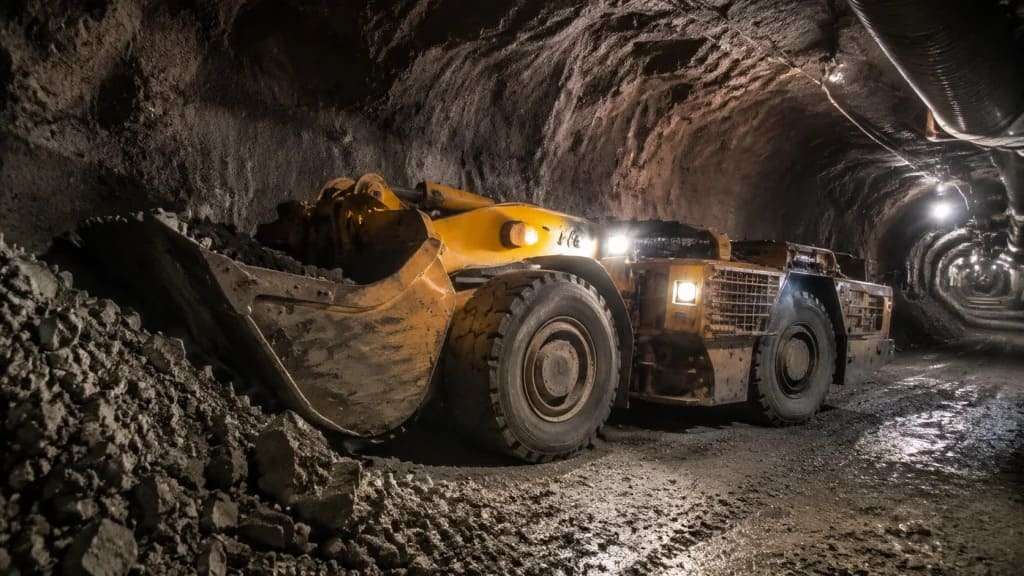

LHD | 100–500 kW | Underground hard rock | DOC + DPF + SCR + ASC | Compact, electric regen, flameproof |
Haul truck (underground) | 150–600 kW | Underground haulage | DOC + DPF + SCR + ASC | High load, long ramps |
Jumbo drill | 50–200 kW | Underground development | DOC + DPF + ASC | Low load, frequent stops, electric regen |
Bolter / scaler | 75–250 kW | Underground (post-blasting) | DOC + DPF + SCR + ASC | DPM control, high dust |
Haul truck (surface) | 500 kW–2+ MW | Open-pit mine | DOC + DPF + SCR + ASC | Altitude 2,000–4,500 m, extreme dust |
Rotary blast hole drill | 300–1,000 kW | Surface drilling | DOC + DPF | Extreme dust, high vibration |
Motor grader | 150–400 kW | Road maintenance | DOC + DPF + SCR | Altitude, dust, year-round operation |
Electric DPF regeneration, regeneration inhibit, automatic engine derate if soot exceeds limits. Real-time DPM monitoring optional.
MSHA/ATEX housing, precision flamepath joints, T3/T4 surface rating, explosion-tested.
Higher DPF regeneration temp, oversized DOC, oxygen sensor compensation, turbo/ECU recalibration.
Heavy-duty pre-cleaners, pulse-cleaned filters, external DPF cleaning stations (2,000–4,000 hr intervals).
Electric pre-heater (eSCR), regeneration during high-load cycles, automatic idle-up if soot accumulates.
Leaky-feeder/Wi-Fi (underground), satellite/cellular (surface). Monitors DPF soot, regeneration, SCR efficiency, NH₃ slip, temperatures. Predictive maintenance alerts.
Thousands of systems in underground and surface mines worldwide.
Flameproof designs, permissible equipment documentation, temperature-class compliance.
Electric DPF regeneration, DPM <0.05 mg/m³, ventilation cost reduction 30–50%.
Validated at 4,500 m, consistent DPF and SCR performance.
Field engineers in major mining regions, remote telematics, troubleshooting.
